GRADD Model Components

This chapter describes the individual components of the Graphics ADapter
Device (GRADD) driver model used for developing device drivers.

The GRADD model is composed of several components that coordinate the
communication among each graphic subsystem and the available graphics
hardware. The components include the following:

 Video Manager (VMAN)
                     The VMAN component binds the GRADD model components
                     together.  VMAN synchronizes the communication
                     between translation layers and a GRADD and also
                     manages the graphics pointer.

                     When an operating system service requests a graphics
                     operation, the associated translation layer sends one
                     of the defined Video Manager Interface (VMI) commands
                     to VMAN.  On receiving a VMI command, VMAN either
                     handles the request or sends it down to the
                     appropriate GRADD.  For more information about VMAN,
                     refer to Video Manager (VMAN).

 Translation Layers
                     A translation layer exists for each graphics engine
                     in OS/2 Warp.  The translation layer converts the
                     function calls made by the graphics engine to the VMI
                     protocol required by VMAN.  For more information
                     about transition layers, refer to Translation Layers.


 SOFTDRAW
                     SOFTDRAW is the default for any simulated graphics
                     functions for nonaccelerated graphics operations.

                     Acting as a graphics library, SOFTDRAW exports the
                     base drawing functions (SDBitBlt and SDLine) used by
                     VMAN to simulate graphics operations. SOFTDRAW
                     provides a generic graphics library. Given a pointer
                     to a linear address (a VRAM bit map or system-memory
                     bit map), SOFTDRAW can draw the bits directly into
                     the bit map.

 Graphics Adapter Device Driver
                     The GRADDs represent the available video hardware.
                      They execute the requested operation or returns it
                     for simulation.

                     When a GRADD receives a GHI function call from VMAN
                     that is not mandatory, the GRADD has the option of
                     performing the requested operation or returning the
                     request to VMAN with a return code of RC_SIMULATE.
                     The RC_SIMULATE return code informs VMAN that the
                     operation needs to be simulated in software.  For
                     more information about GRADDs, refer to Graphics
                     Adapter Device Driver (GRADD).

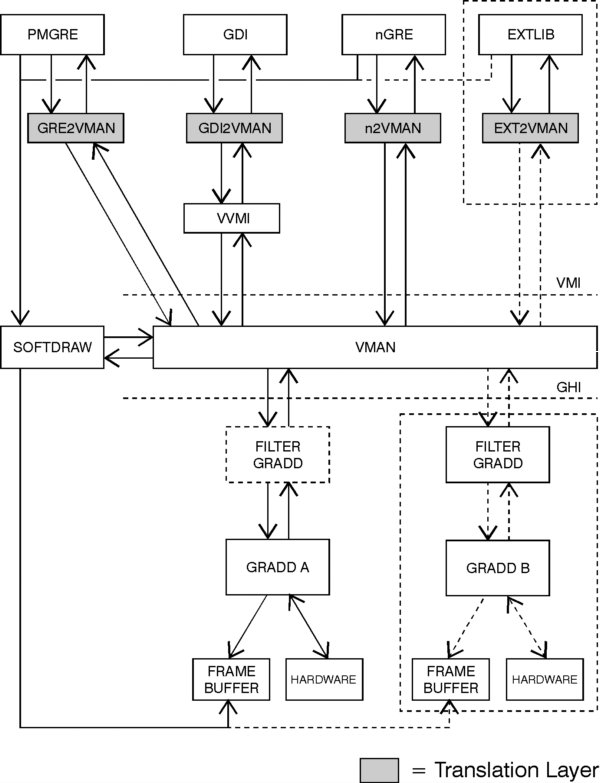

 The following figure graphically illustrates the components of the GRADD
 model.
